Yes. ETENZ can supply the containerized shell, equipment bases, service aisles, openings and reserved interfaces while the customer installs the RO equipment and controls.
Containerized RO Water Treatment System
The ETENZ containerized RO water treatment system is an OEM/ODM prefabricated enclosure and integration platform for reverse-osmosis equipment manufacturers, water-treatment system integrators and project teams, typically used to turn municipal tap water or industrial raw water into low-hardness, low-TDS process water.
Environmental Process ModuleReverse Osmosis Water Treatment StationProcess Module EnclosureIndustrial Equipment Enclosure
Key Metrics
5-100m³/h
Capacity
20 / 40ft
Envelope
DN50-DN200
Connections
IP54 / 55
Protection
Product Features
OEM/ODM Platform
Enclosure manufacturing, interface prefabrication, assembly support and factory checks to customer brand, drawings, BOM, process package and batch standards — built for RO OEMs and system integrators.
Layered Delivery Scope
Delivery can start from the shell, equipment bases and openings, then extend to power distribution, lighting, thermal control, pipe supports and complete integration support.
RO Equipment Fit
Membrane skids, high-pressure pumps, cartridge filtration, dosing and CIP units are coordinated for layout, service access, membrane pull space and DN50-DN200 piping interfaces per the customer process package.
OEM/ODM Platform
Enclosure manufacturing, interface prefabrication, assembly support and factory checks to customer brand, drawings, BOM, process package and batch standards — built for RO OEMs and system integrators.
Layered Delivery Scope
Delivery can start from the shell, equipment bases and openings, then extend to power distribution, lighting, thermal control, pipe supports and complete integration support.
RO Equipment Fit
Membrane skids, high-pressure pumps, cartridge filtration, dosing and CIP units are coordinated for layout, service access, membrane pull space and DN50-DN200 piping interfaces per the customer process package.
Product Details
RO water treatment cabin integration concept
The containerized RO water treatment system is an OEM/ODM prefabricated enclosure and integration platform for RO equipment manufacturers, system integrators and project teams, typically used to treat municipal tap water or industrial raw water into low-hardness, low-TDS process water through pretreatment and reverse-osmosis membranes. ETENZ manufactures and integrates the cabin structure, equipment bases, service aisles, pipe openings, cable routing, thermal control and auxiliary electrical systems around the customer equipment list, process layout, interface data and brand requirements. 5-100 m3/h is a common equipment fit range; final output and water-quality targets follow the customer process package.
RO water treatment cabin integration concept

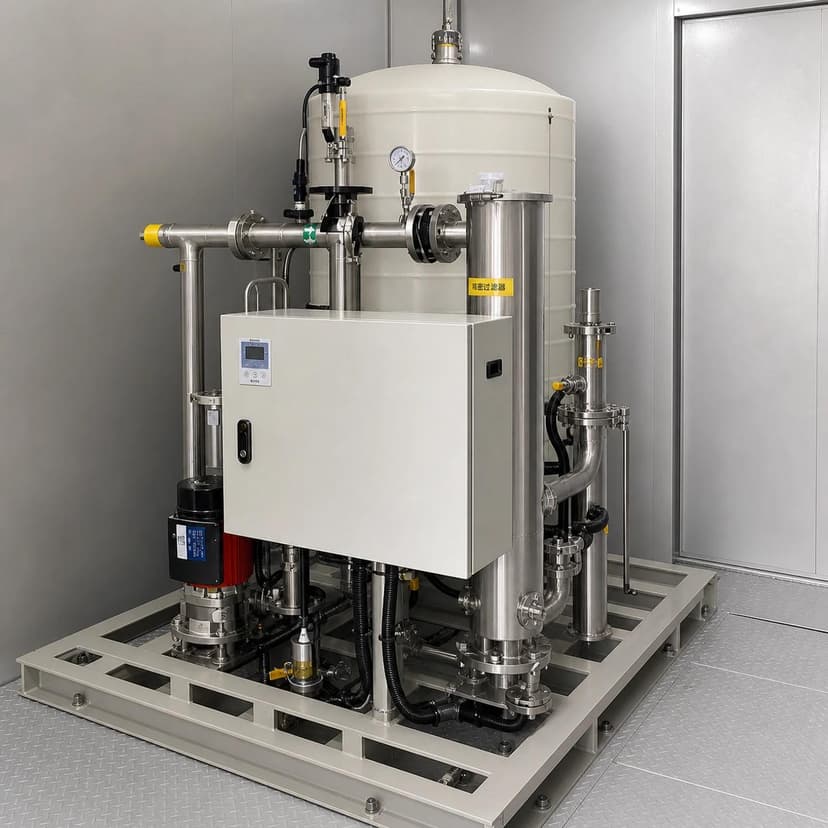

A reverse-osmosis train typically includes cartridge filtration, high-pressure pumps, membrane skids, dosing and CIP cleaning units, plus feed, permeate, concentrate and drain connections. ETENZ organizes cabin space, mounting interfaces, piping routes, membrane pull space and control-cabinet installation conditions per the customer process package; permeate flow, salt rejection, recovery, membrane life and cleaning strategy are confirmed by the customer equipment selection and control scheme rather than guaranteed by ETENZ by default.
The cabin can be manufactured as a 20ft, 40ft or custom module, commonly integrating DN50-DN200 water connections, a 2.5-6 bar low-pressure piping basis, IP54 / IP55 protection, equipment bases, flooring, service doors, cable trays, lighting, emergency lighting, distribution boards and ventilation or AC. These values support manufacturing and interface discussions and can be adapted to customer equipment dimensions, site piping and transport conditions.
The product fits RO equipment manufacturers, water-treatment system integrators, project teams and customers needing own-brand delivery. ETENZ offers three cooperation layers — shell and interface supply, cabin auxiliary prefabrication, and OEM/ODM complete integration — and supports factory inspection and documentation handover; civil works, site operation and water-quality compliance scopes follow the project contract.
Delivery Scope Options
Scope 1
Enclosure and Interface Supply
Scope 1Enclosure and Interface Supply
For customers who bring their own RO equipment and process package. ETENZ supplies the containerized shell, doors, floor, equipment bases, service aisles, pipe openings, cable entries and lifting/transport structure.
Scope Includes:
Containerized enclosure manufacturing
Equipment bases and service aisles
DN50-DN200 pipe-opening reservation
Cable entries and earthing interfaces
Customer color and nameplate support
Scope 1
Enclosure and Interface Supply
Scope 1Enclosure and Interface Supply
For customers who bring their own RO equipment and process package. ETENZ supplies the containerized shell, doors, floor, equipment bases, service aisles, pipe openings, cable entries and lifting/transport structure.
Scope Includes:
Containerized enclosure manufacturing
Equipment bases and service aisles
DN50-DN200 pipe-opening reservation
Cable entries and earthing interfaces
Customer color and nameplate support
Technical Specifications
Enclosure format
20ft / 40ft containerized cabin, custom modules supported
Equipment fit range
5-100, common layout range for RO trains, multi-cabin expandable
m3/h
Water connections
DN50-DN200 flanged or quick-connect; feed, permeate and concentrate routed separately
Low-pressure piping basis
2.5-6 common low-pressure-side range; membrane-stage high-pressure piping follows the equipment skid
bar
Enclosure protection
IP54 / IP55 common, adjustable to project environment
Equipment bases
Membrane skid, pump group, dosing unit and control-cabinet bases per drawings
Service access
Aisles, door orientation and membrane element pull space confirmed by layout
Electrical interfaces
AC 380V / 220V distribution, control-cabinet mounting and cable tray routing
Thermal control
Ventilation / AC, sized to equipment heat load, freeze protection and site conditions
Material options
Painted carbon steel, stainless components, UPVC or lined piping per project
Pretreatment & CIP interfaces
Cartridge filtration, dosing, CIP and drain routes reserved per customer equipment
| Parameter | Specification |
|---|---|
| Enclosure format | 20ft / 40ft containerized cabin, custom modules supported |
| Equipment fit range | 5-100, common layout range for RO trains, multi-cabin expandable m3/h |
| Water connections | DN50-DN200 flanged or quick-connect; feed, permeate and concentrate routed separately |
| Low-pressure piping basis | 2.5-6 common low-pressure-side range; membrane-stage high-pressure piping follows the equipment skid bar |
| Enclosure protection | IP54 / IP55 common, adjustable to project environment |
| Equipment bases | Membrane skid, pump group, dosing unit and control-cabinet bases per drawings |
| Service access | Aisles, door orientation and membrane element pull space confirmed by layout |
| Electrical interfaces | AC 380V / 220V distribution, control-cabinet mounting and cable tray routing |

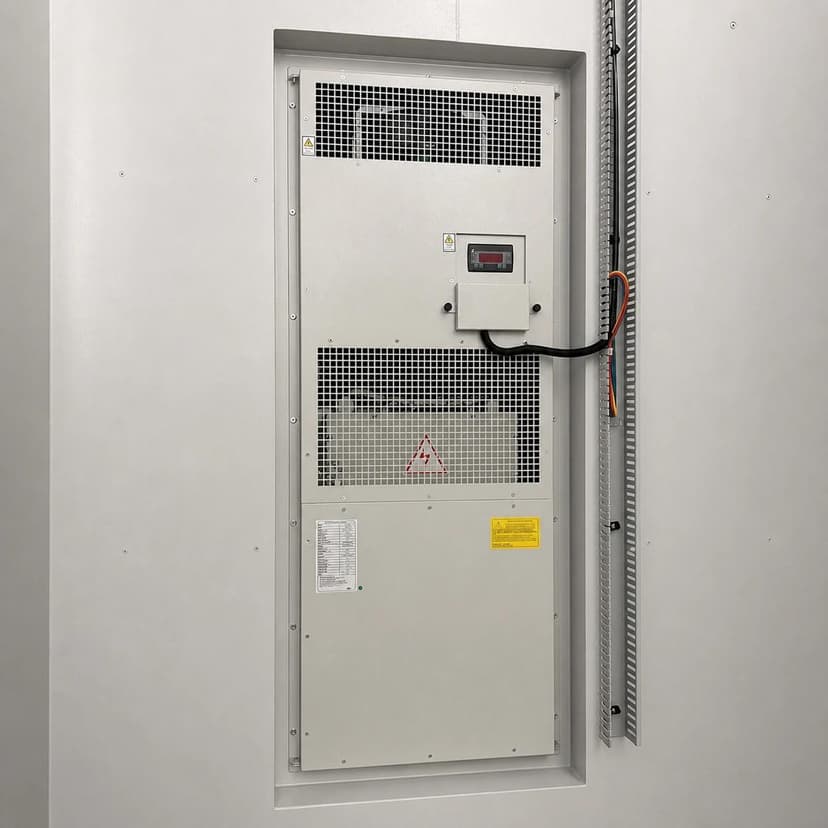

| Thermal control | Ventilation / AC, sized to equipment heat load, freeze protection and site conditions |
| Material options | Painted carbon steel, stainless components, UPVC or lined piping per project |
| Pretreatment & CIP interfaces | Cartridge filtration, dosing, CIP and drain routes reserved per customer equipment |
Product FAQs
Yes. OEM/ODM projects can follow customer brand, color, nameplate, packaging, drawing number and factory documentation requirements.
The customer typically provides the process package, equipment list, membrane skid dimensions, piping interfaces, control requirements, power conditions, target water quality and acceptance criteria.
Not by default. Permeate flow, salt rejection, recovery and membrane life are defined by the customer process solution, equipment selection and project contract.
RO operation produces a concentrate stream. Concentrate and drain connections are reserved per the customer process package; discharge or reuse routing is confirmed by the project per local requirements.
Related Solutions
Prefabricated Infrastructure

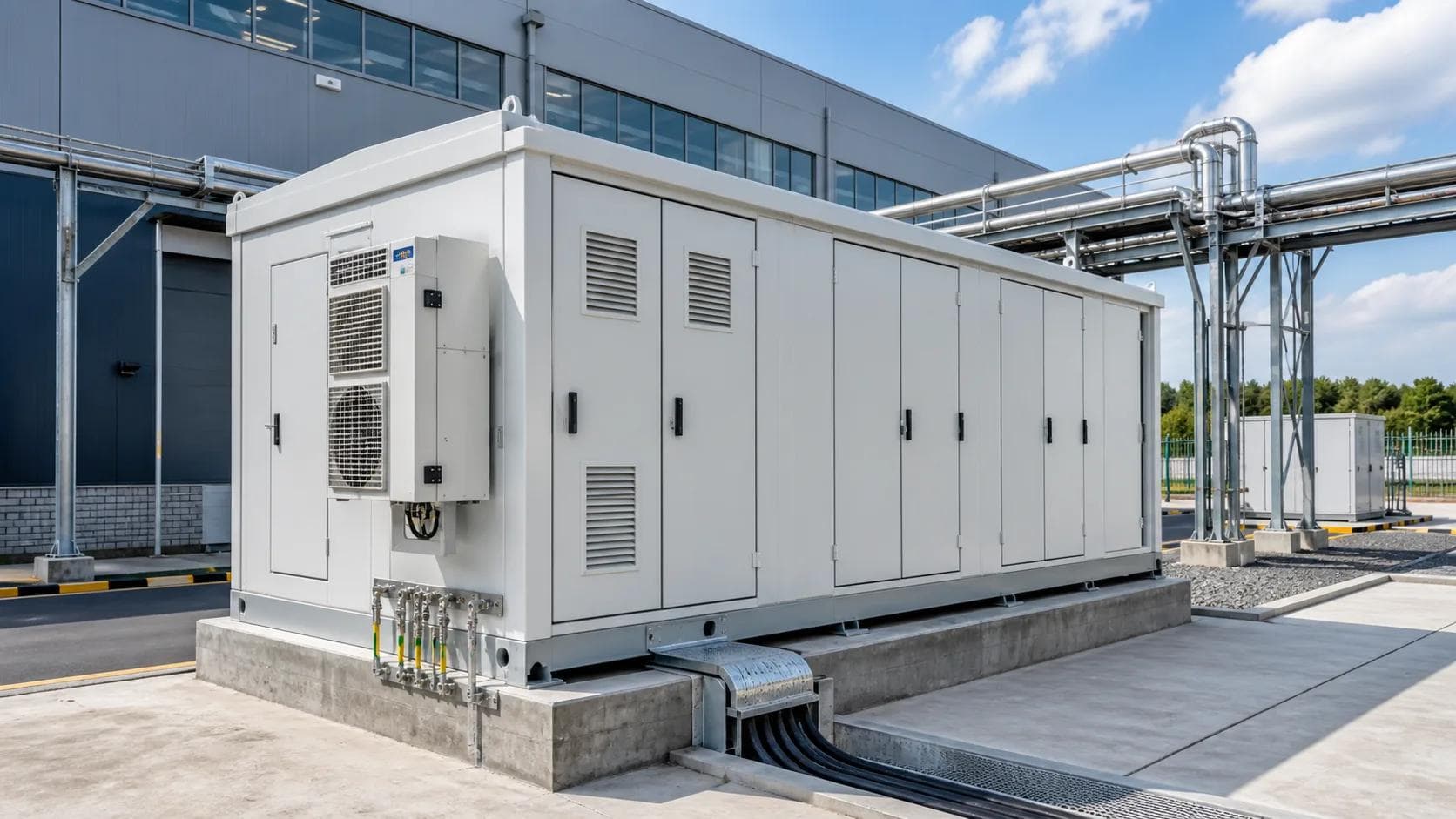

Prefabricated E-House Project Delivery Solution
